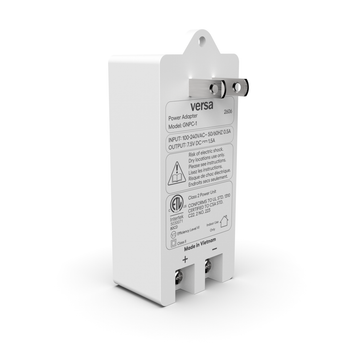

GNPC-1 Google Nest Power Adapter
Versa
A pro-install replacement for the factory Google Nest Cam power brick. The GNPC-1 delivers the same regulated 7.5V DC the camera expects, but adds an integrated security mounting screw hole and supports cable runs up to 75 ft on 18 AWG — three times the length of typical aftermarket adapters and well beyond Google's OEM cable. ETL Listed and built for indoor commercial and residential installs where the transformer needs to be locked down out of sight.
Key Features
- OEM-spec output — regulated 7.5V DC at 1.5A; designed as a one-for-one replacement for the standard wired Google Nest Cam power transformer
- 75 ft cable run support — terminate to 18 AWG and pull the camera up to 75 ft from the transformer; clean ceiling, soffit, and concealed-run installs without daisy-chaining adapters
- Security mounting screw hole — lock the transformer to the wall so it can't be unplugged by an end user or tampered with on commercial jobs
- Universal input — 100–240V AC, 50/60Hz; tolerant of variable line conditions
- Automatic short-circuit protection — output shuts down on a fault and self-recovers once cleared
- NTC temperature protection — Negative Temperature Coefficient components limit inrush current and prevent overheating
- ETL Listed by Intertek — conforms to UL 1310 and CSA C22.2 No. 223 for Class II indoor-use transformers
- Compact two-prong plug-in — 1.71" × 1.15" × 3.75"; sits flush against standard duplex receptacles
- Indoor use — residential and commercial
Specifications
GNPC-1 Specifications
Google Nest Cam Power Transformer
| Electrical | |
|---|---|
| Input | 100–240V AC, 50/60Hz, 0.5A |
| Output | 7.5V DC, 1.5A |
| Class | Class 2 power supply |
| Compatibility | |
| Application | Replacement power transformer for wired Google Nest Cam models requiring 7.5V DC input |
| Replacement Type | One-for-one OEM-spec replacement for the standard Nest Cam power brick |
| Wire & Run | |
| Cable Run | Up to 75 ft (22.9 m) |
| Wire Gauge | Supports 18 AWG conductor |
| Physical | |
| Dimensions (L × W × H) | 1.71" × 1.15" × 3.75" |
| Plug Type | Two-prong plug-in (NEMA 1-15P) |
| Mounting | Integrated security mounting screw hole Anti-Tamper |
| Protection | |
| Short-Circuit Protection | Automatic shutdown on output fault — self-recovers once the fault is cleared |
| Temperature Protection | NTC (Negative Temperature Coefficient) components limit inrush current and prevent overheating |
| Operating Conditions | |
| Use | Indoor only — residential & commercial |
| Certifications & Compliance | |
| Safety Listing | ETL Listed by Intertek |
| Standards | UL 1310 · CSA C22.2 No. 223 (Class II indoor-use transformers) |
Confirm your camera's required input voltage before installation. The GNPC-1 outputs 7.5V DC and is intended for Google Nest Cam models that accept 7.5V input — do not use with Nest models requiring a different voltage. Indoor use only.
Installation Notes
The GNPC-1 is compatible with wired Google Nest Cam models that use the standard pogo-pin or barrel connector input — check your camera model before ordering. The security mounting screw hole accepts a standard #8 or #10 screw and is positioned to anchor the adapter body flat against the wall plate, preventing end-user disconnection on commercial installs. For concealed cable runs, terminate to 18 AWG stranded wire and pull up to 75 ft. Available for dealer and distributor purchase at wave-electronics.com.
