MINI-345
versa wireless

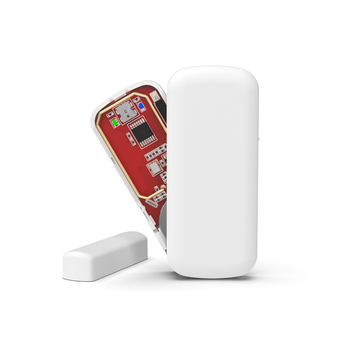

If you've installed the Resideo 5800MINI, you already know how to install this. The MINI-345 is a direct replacement for the 5800MINI — same 345 MHz frequency, same panel compatibility, same surface-mount installation — with one meaningful upgrade: the cover slides off instead of prying off.
Where the 5800MINI requires a flathead to separate the lid from the base, the MINI-345 cover slides forward and lifts away in one motion. No tools, no risk of cracking the housing, no disturbing the mount. Battery service and color changes take seconds instead of minutes.
Key Features
- Drop-in replacement for the Resideo 5800MINI — same 345 MHz frequency, same VISTA, PROA7, and 5800-series panel compatibility
- Patented Bluefield magnet indicator — blue LED lights when the magnet is within range; confirm placement at the door before you commit the tape
- Slide-off cover — tool-free battery service and color changes; no prying, no screwdrivers, no removing the PCB
- Ultra-low-profile design — 2.2" × 1" × 0.25", roughly half the depth of the 5800MINI; fits tight casing and narrow frames where the OEM sensor won't
- Diagnostic LED set — blue (magnet in range), green (transmit confirmation), red (low-battery alert)
- 1" magnet gap on wood, 1/4" on metal
- Tamper + reed switch — full supervision; tamper trips on cover removal
- 5+ year battery life on a single Panasonic CR2032
- 345 MHz — compatible with Honeywell VISTA series, Resideo PROA7, and 2GIG GC2/GC3/Edge installations
- UL listed · FCC · IC · 95% RH non-condensing · 32–122°F operating range
Specifications
MINI-345 Specifications
345 MHz Compact Door/Window Contact
| Wireless & RF | |
|---|---|
| Frequency | 345 MHz |
| Panel Compatibility | Honeywell/Resideo 5800-series · VISTA panels · 2GIG GC2 / GC3 / Edge |
| Supervision | Yes — fully supervised single-zone transmitter |
| Detection & Function | |
| Device Type | Single-zone door/window contact |
| Bluefield Magnet Indicator Patented | Yes — blue LED confirms magnet is within range during install |
| LED Indicators | Blue (magnet in range) · Green (transmit) · Red (low battery) |
| Reed & Tamper Switch | Internal reed switch · tamper trips on cover removal |
| Magnet Gap | 1" on wood · 1/4" on metal surfaces (max) |
| Physical | |
| Transmitter Dimensions (L × W × H) | 2.2" × 1" × 0.25" (55.9 mm × 25.4 mm × 6.4 mm) |
| Magnet Dimensions | 1" × 0.25" × 0.25" (25.4 mm × 6.35 mm × 6.35 mm) |
| Mounting | Surface mount — double-faced tape included |
| Enclosure | Slide-off cover for tool-free battery service |
| Power | |
| Battery | 1 × 3VDC Lithium Coin Cell — Panasonic CR2032 (225 mAh) |
| Battery Life | 5+ years |
| Environmental | |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Relative Humidity | 95% non-condensing (UL tested at 85%) |
| Use | Indoor — residential & commercial |
| Certifications & Warranty | |
| Agency Listings | UL · FCC · IC |
| Warranty | 1 year |
Compatible Panels
The MINI-345 is a 345 MHz wireless door and window sensor compatible with 2GIG GC2, GC3, and Edge panels, Honeywell VISTA series, Resideo PROA7, and all 5800-series compatible receivers — the same panels that use the Resideo 5800MINI. Programs as a standard supervised perimeter zone. Available for dealer and distributor purchase at wave-electronics.com.
